PFS3125-24ET-190

PFS3125-24ET-190

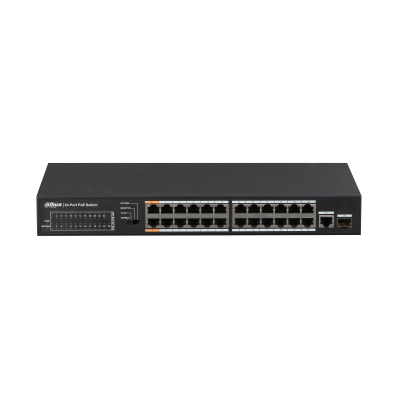

24-Port FE PoE+ 1-Port Gigabit Combo PoE Switch
> Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards
> Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards
> Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode.
> Supports Store-and-Forward
> 24*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX)
> Port 1-2 support the maximum power of 60W, PoE output total power up to 190W
> Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
> 4K entry MAC address table with auto-learning and auto-aging
> LED indicators for monitoring power, link and activity
Categories: ,
TitleTypeDownload
Datasheet_DH-PFS3125-24ET-190.pdfpdf
